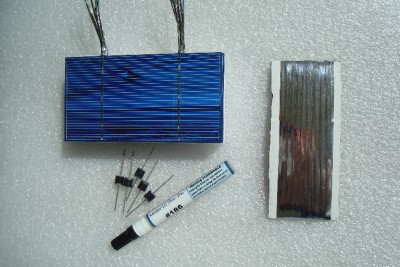

Kit:72 Solar cells 3"x6"1.8W/ea BUS wire Flux pen Diods

Manufacturer: N/A

SKU: test

Price: $169.00
This item is in stock

This is lot for:

1. 72 SOLAR CELLS

WHOLE cells - NOT BROKEN / NOT SPLIT!

3" x 6" cells

Factory Cell Specifications:
Average Power (Watts): 1.80 Wp
Average Current (Amps): 3.5 Imax
Average Voltage (Volts): 0.5 Vmax
Thickness 0.2 mm

The term "B Grade" refers to SOME cells having some stains (or other small cosmetic issues) from tabbing process (most of them do have solder on the back - because cells was tested and prepared ( by the factory) to be connected for the PANEL).

ATTN! beware of CLEAR back TABBED cells - were are LOW power - because got rejected even BEFORE got connected for Panel !!!

ALL Cells are FULLY tabbed

2. Bus Wire (to connect cell stringd together on the panel) 20' ...........$10 value

(according to factory you will NOT need any Solder - it's already plenty of it on the wire itself )

Bus Wire

GAUGE: 0,2000MM
WIDTH: 5,0000MM

MATERIAL: 62SN/36PB/2AG TINNED COPPER
SOLDER COATING THICKNESS: 400-600 MICROINCHES/SIDE

you do not need tabbing wire -

ALL cells ARE fully tabbed by the factory

3. Rosin activated Flux Pen .............$8 value

Rosin Pen Flux Dispensing Pen #186, .33 Oz

Kester 186 flux pen allows controlled application of flux eliminating the mess from flux bottles. Chisel point, spring loaded tip dispenses just the right amount of flux. The Kester Flux-Pen stops waste while limiting operator exposure to soldering chemicals. Rosin flux contains a mildly activated rosin (RMA) type flux approved under MIL-F-14256 for military grade soldering. Residue may be left in place or removed using a solvent.

4. 4x 6-AMP 6A 1000V BLOCKING DIODES FOR SOLAR CELL PANEL............. $7 value

Axial Lead Silicon Rectifier Diodes
Maximum Repetitive Peak Reverse Voltage: 1000V
Maximum RMS Voltage: 700V
Maximum DC Blocking Voltage: 1000V
Maximum Average Forward Rectified Current (60Hz, resistive or inductive load. Derate current by 20% for capacitive load): 6A
Peak Forward Surge Current (8.3ms single half sine-wave superimposed on rated load-JEDEC Method): 400A
Operating Junction and Storage Temperature Range: -55° to +125°C

Maximum Forward Voltage (IF=6A): 0.95V
Maximum DC Reverse Current at Rated DC Blocking Voltage (TA=25°): 5uA
Maximum DC Reverse Current at Rated DC Blocking Voltage (TA=100°C): 400uA
Typical Junction Capacitance (VR=4V, f=1MHz): 100pF
Maximum Thermal Resistance Junction to Ambient: 10°C/W
