solar cells rosin activated flux dispensing pan # 186

This is listing for :

1x Rosin activated Flux Pen ................

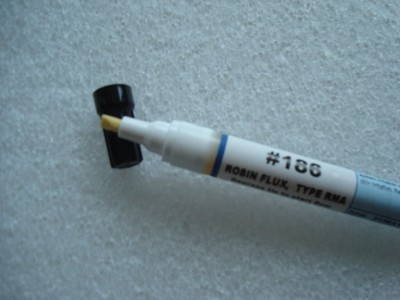

Rosin Pen Flux Dispensing Pen #186, .33 Oz

• No more Flux mess
• Designed for easy application
• High thermal stability

Kester 186 Flux Pen® is specifically designed for leaded and lead-free rework of conventional and surface mount circuit board assemblies.
Kester 186 under MIL-F-14256, was QPL approved as Type RMA. Although the fluxing ability approaches that of Type RA flux, residues after soldering are non-corrosive and non-conductive.

Kester 186 has been developed for use in critical applications where difficult assemblies are to be soldered, but process requirements stipulate use of Type RMA flux.
Kester 186 possess high thermal stability for soldering multi-layer assemblies which require higher temperatures.

Exposure to high preheat temperatures does not degrade solubility of the residue in normal cleaning solvents.
There is no surface insulation resistance degradation caused by the flux residue.
The use of a minimum of ionic activating agents and the inactive nature of the residue permits leaving the residue on circuit board assemblies for many applications.
The flux residue is also moisture and fungus resistant.

Product Specifications
Specific Gravity: 0.879
Solids Content (%): 36
Acid Number (mgKOH/g flux): 55.5

IPC
Silver Chromate: Pass
Classification: ROL0
SIR: Pass
Halide Content: 0.02
Copper Plate Corrosion: L
Copper Mirror: L

Dear Visitor,

Welcome to EvergreenWorld, your one-stop shop for DIY Solar Panel projects!

Here at EvergreenWorld, our goal is to provide clean, renewable energy at a price that is affordable to everyone. Our business not only helps you save money on your electric bill but also helps protect the environment by providing a clean, renewable and emission-free source of energy . Whether you are a beginner in the Solar Cell world, an educator that wishes to spread the use of alternative energy, or someone who regularly builds panels, we provide many different options to fulfill all of your DIY needs.

Grades

• Whole B-Grade - In our store, you can find a variety of grades of solar cells. All of the solar cells that we sell are factory pre-tabbed so tabbing them together becomes relatively simple. For the avid Solar Panel enthusiast or hardened DIY veteran, there are Whole B-grade Solar Cells - These are solar cells that are have slight staining or a very tiny, almost invisible chip on the edge of the solar cell. They are called B-grade because as soon as an A-grade solar cell is tabbed, it is called B-grade.
• Split B-Grade -For those seeking power at a more affordable price, we offer the Split B-grade Solar Cells. These are solar cells that have either a hairline horizontal crack or is split through the length of the cell. In both cases the power output is almost exactly the same as a non-damaged cell. Furthermore, once the Split B-grade Solar Cells are tabbed together and encapsulated into a solar panel, it is almost impossible to distinguish that the cell is damaged at all. Split B-grade Solar Cells are the best deal for your money!
• Chipped B-Grade - For educators of the solar cell panel-building process, those seeking a means to practice making a panel, or people who are simply on a tighter budget, there is the Chipped B-grade Solar Cells. This grade of solar cells is given its name due to fact that one of the four corners of the cell is chipped off. All of the Chipped B-grade Solar Cells that we offer are fully functional and have at least %85 of the cell still intact. For further description of what Chipped B-grade Solar Cells look like, refer to the pictures provided in each listing - a picture is worth a thousand words.
• Short-Tabbed - All of the solar cells that we provide are factory pre-tabbed. What this means is that the height of the cell has tabbing wire already soldered onto the cell. Although most of the cells we provide have 3 inches of tabbing wire (from the edge) in order to connect to the next cell, we also offer cells that have clipped tabs. Solar cells that have clipped tabs are referred to as Short-Tabbed cells. All of the Short-Tabbed cells that we offer have about a quarter of an inch or more of tabbing wire (from the edge) in order to solder the additional 3” onto it. Please read each listing carefully to see if the order is for Short-Tabbed Cells or Full Length Tabbed Cells.

Additional DIY Items

Visit My eBay Store

Our store not only provides Solar Cells but additional items that are required to start your DIY Solar Panel project. These items include, but are not limited to: extra tabbing wire, Bus wire, Blocking diodes, LED lights, Flux dispensing pens, and more.

• Extra Tabbing Wire - This is usually needed for Short-Tabbed Cells as required.
• Bus Wire - This is needed to surround the perimeter of the solar panel in order to transfer the collected energy to a battery or other power supply.
• Blocking Diodes - These act as “One-Way” signs for an electric current.
• LED lights - These act as indicators that a sufficient amount of power is flowing through a wire.
• Rosin Activated Flux Dispensing Pens - These are a very practical way to properly solder wire and solar cell together.

Please do not hesitate to contact us for any additional information that you might need regarding orders, DIY projects or prices using the eBay Messaging system.

Thank you for looking in our store and we look forward to doing business with you! Buyers and Sellers - We are all on the same team to help protect the Earth’s environment and help Humankind to stop the dependency of fossil fuels. We are proud to be part of this team and hope that you will join us in our mission to help mother nature. Join us and remember - Go Green!
